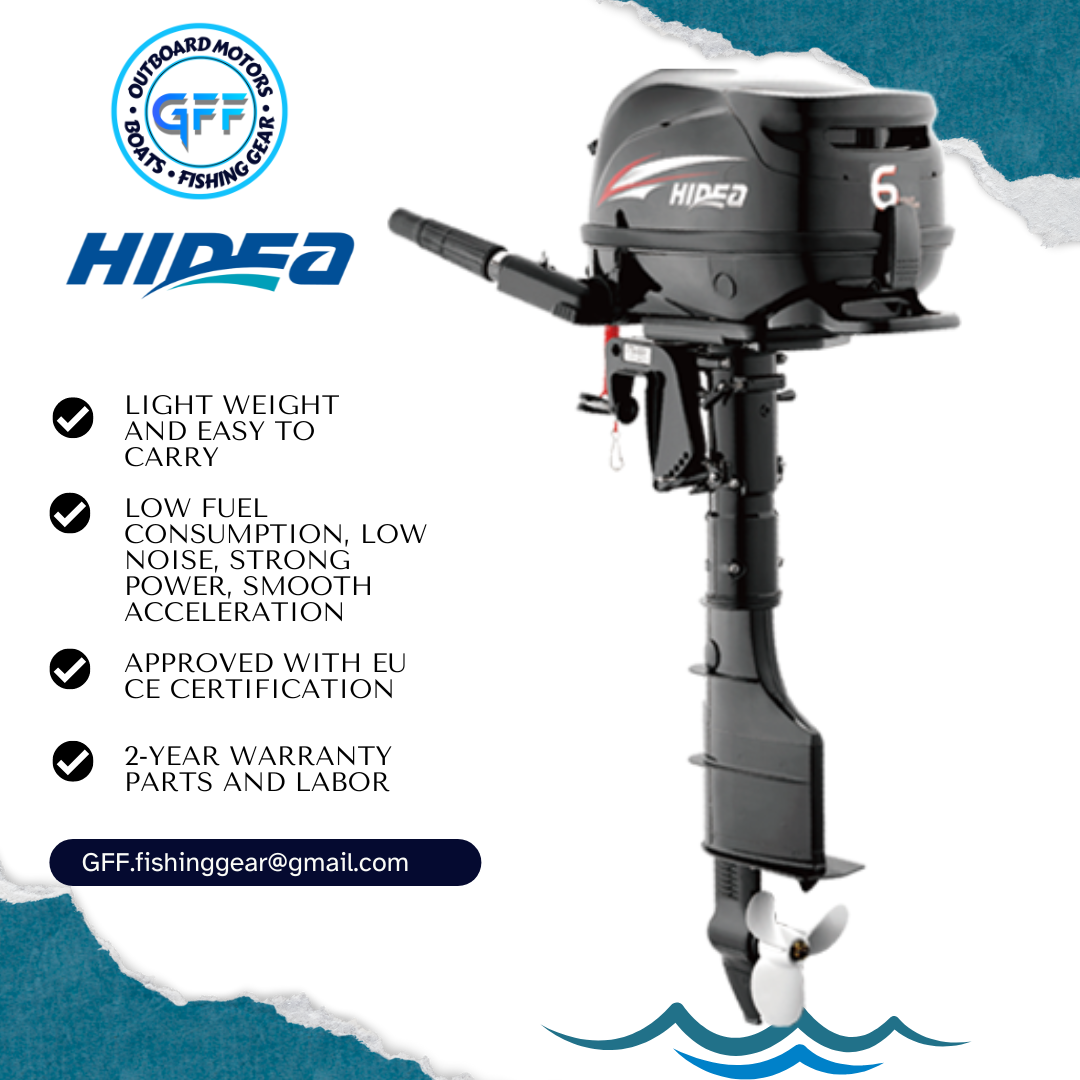

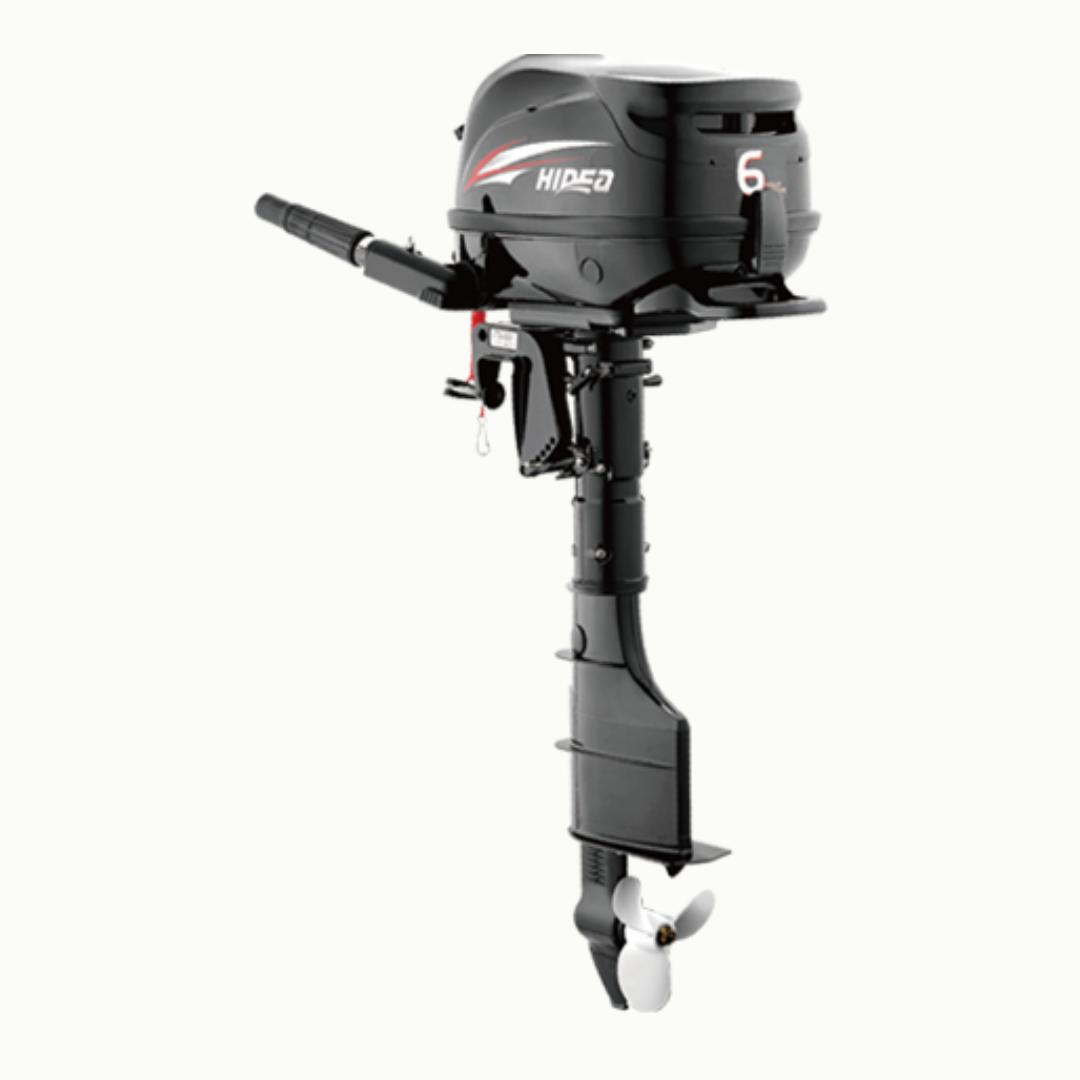

Hidea 6HP 4-stroke HDF6 Outboard Motor
Hidea 6HP 4-stroke HDF6 Outboard Motor
Couldn't load pickup availability
If you're in search of lightweight portable power, the Hidea HDF6 outboard motor is an excellent choice for your skiffs, tenders and small to medium sized inflatable boats.
The HDF6 outboard engine offers the largest displacement of any one cylinder outboard in this hp and weight class. It provides all the power you need for motoring in a small craft. This engine does that as well as providing fuel efficiency second to none and a redesigned carrying handle and holding grip make it convenient to transport! With all of this available at a competitive price, it is no wonder this little 6hp outboard receives so much attention and praise!
The 6hp short & long shaft models are now available with both an Internal 1.2L fuel tank and with an external 12L fuel tank. The model includes a built-in external fuel connector so you can easily add an optional separate fuel tank.
Hidea HDF6 4-Stroke Benefits:
◇ Truly six layers of paint, good corrosion resistance.
◇ Using the US brand PPG paint, more beautiful exterior.
◇ Anti-watergrass design, Truly without wrapped water grass.
◇ Light and compact!
◇ Side mounted shift lever, easy for operation.
◇ Greatly reduced vibration for smooth and stable running at all speeds
◇ Greatly reduced induction noise for a quieter ride
◇ CE approved.
◇ Both internal and external fuel tank available
Easy Operation and Handling:
◇ Digital CDI ignition for easier engine starting, quicker throttle response and smoother trolling
◇ Recoil starter with larger reel making manual starting fast and easy
◇ Shallow water drive
◇ Adjustable steering friction for reducing steering effort
◇ Newly designed holding grip and larger carrying handle
Fundamentals for User Convenience and Reliability:
◇ Through-the-prop exhaust for a quieter ride
◇ Thermostatically controlled cooling system for consistent engine temperature
◇ Stainless steel water pump housing liner for outstanding durability
◇ High grade marine aluminum alloy that provides the ultimate protection against corrosion
◇ Zinc coating on internal water passages for superior corrosion resistance
| Specification Model | HDF6 |
| Max.Output(kw) | 4.4 |
| Full Throttle Operating Range(rpm) | 4500-5500 |
| Stroke | 4 |
| Cylinder | 1 |
| Displacement(cc) | 139 |
| Bore×Stroke (mm) | 62×46 |
| Length×Width×Height (mm) | S:1041×750×333 L:1170×750×333 |
| Length×Width×Height (inch) | S:41.0×29.5×13.1 L:46.1×29.5×13.1 |
| Weight (kg) | S:27 L:28 |
| Weight (lb) | S:60 L:62 |
| Transom Height(mm) | S:446 L:550 |
| Gear Ratio | 27:13(2.08) |
| Gear Shift Position | F-N-R |
| lgnition System | TCI |
| Cooling System | Water-cooling |
| Starting System | Manual |
| Control System | Rear operation |
| Capacity of Fuel Tank(L) | 1.1 , internal tank |
