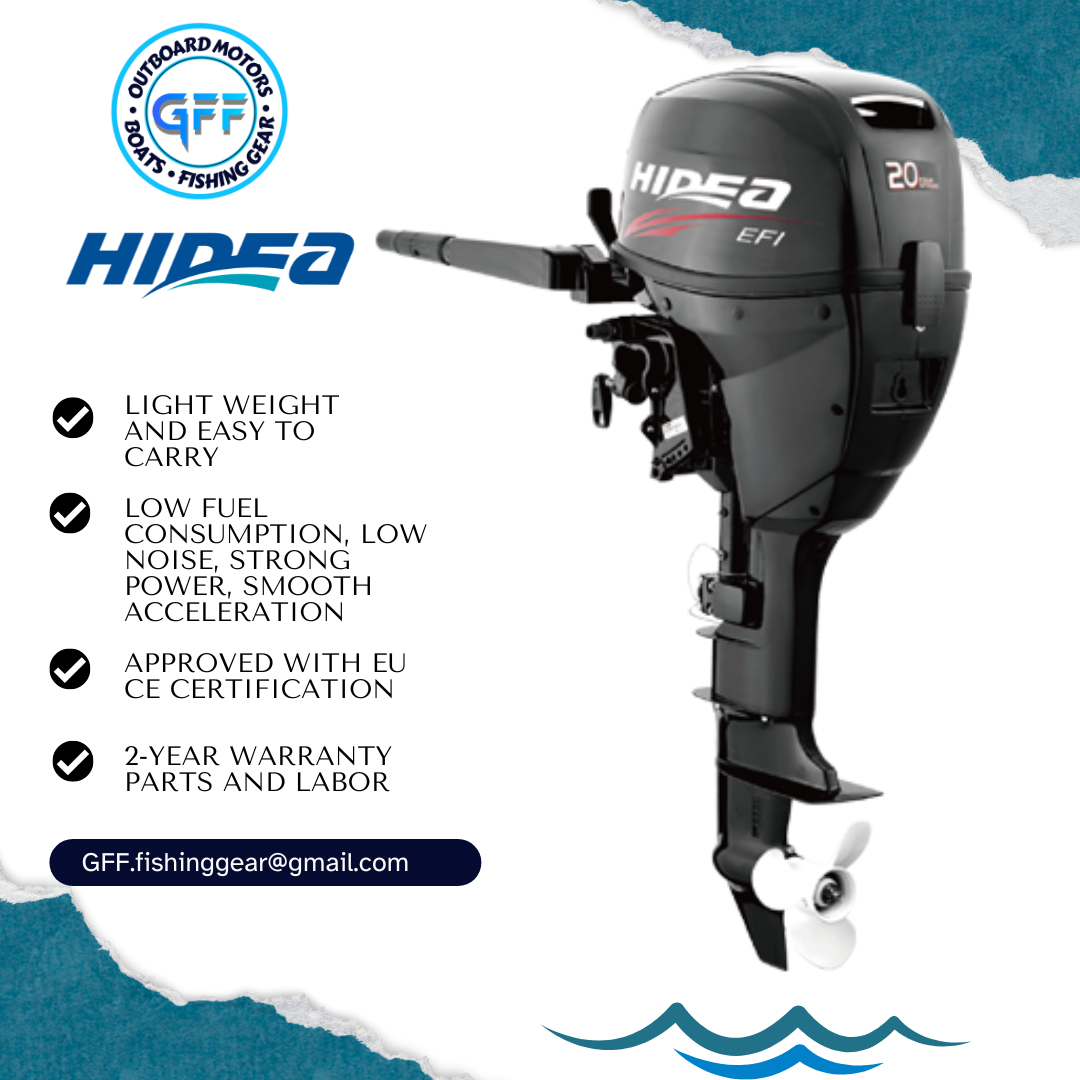

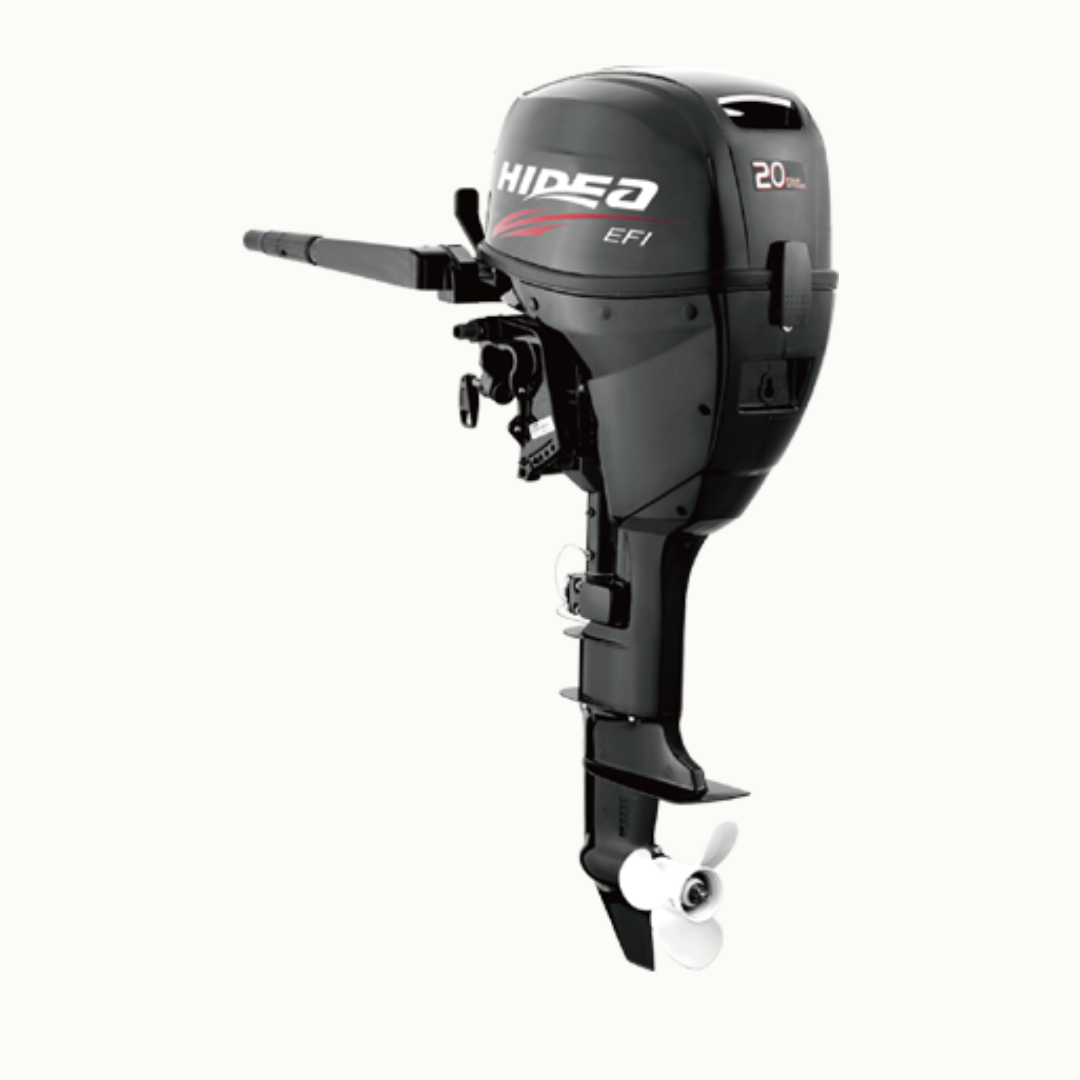

Hidea 20HP 4-stroke HDF20 Outboard Motor
Hidea 20HP 4-stroke HDF20 Outboard Motor
Regular price
₱155,880.00 PHP
Regular price
Sale price
₱155,880.00 PHP
Unit price
/
per
Couldn't load pickup availability
Available in
- HDF20HS - Manual Start, Tiller Handle, Transom height – Short shaft
- HDF20HL - Manual Start, Tiller Handle, Transom height – Long shaft
- HDF20HES-IB-Electric start, Tiller handle, Internal Lithium Battery Transom height-Short shaft
- HDF20HEL-IB-Electric start, Tiller handle, Internal Lithium Battery Transom height-Long shaft
- HDF20FES-Electric start, Remote control, Transom height-Short shaft
- HDF20FEL-Electric start, Remote control, Transom height-Long shaft
| Specification Model | HDF20 |
| Max.Output(kw) | 14.7 |
| Full Throttle Operating Range(rpm) | 4500-5500 |
| Stroke | 4 |
| Cylinder | 2 |
| Displacement(cc) | 345 |
| Bore×Stroke (mm) | 61×59 |
| Compression Ratio | 9.9:1 |
| Length×Width×Height (mm) | S:1000×427×1080 L:1000×427×1207 |
| Length×Width×Height (inch) | S:39.4×16.8×42.5 L:39.4×16.8×47.5 |
| Weight (kg) | S:58 L:60 |
| Weight (lb) | S:128 L:132 |
| Transom Height(mm) | S:448 L:575 |
| Gear Ratio | 27:13(2.08) |
| Gear Shift Position | F-N-R |
| lgnition System | CDI |
| Cooling System | Water-cooling |
| Starting System | Manual/Electric start |
| Control System | Rear / Front operation |
| Capacity of Fuel Tank(L) | 12 |
