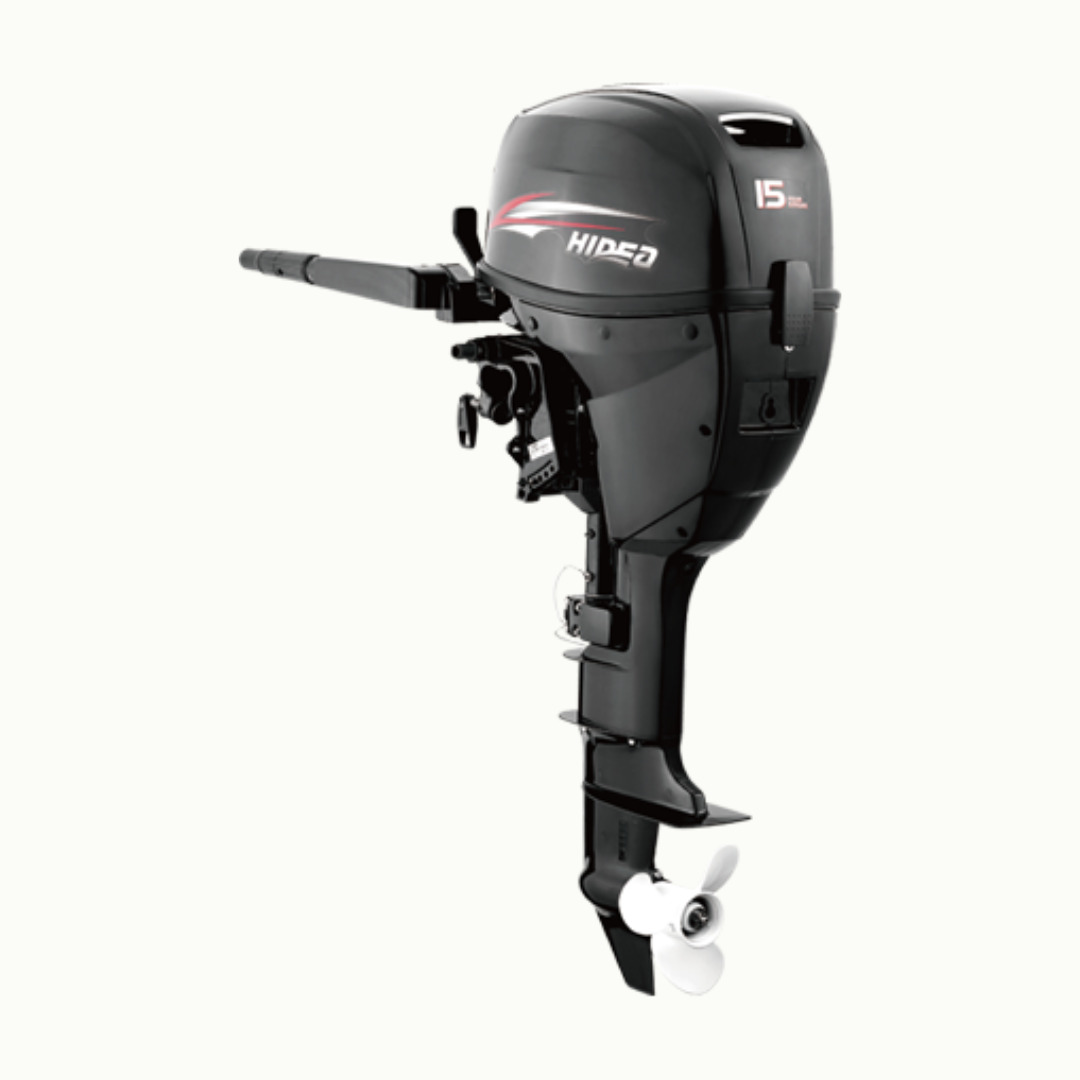

Hidea 15HP 4-stroke HDF15 Outboard Motor
Hidea 15HP 4-stroke HDF15 Outboard Motor
Regular price
₱153,180.00 PHP
Regular price
Sale price
₱153,180.00 PHP
Unit price
/
per
HDF15 model and made it better! You can enjoy added features such as a larger displacement and enhanced motor mounts from this durable HDF15 4-stroke engine. Go ahead; put the engine to the test! You won’t regret it!
We also have the remote steering/throttle models, to provide you even greater operating convenience. This engine offers the same features as all of our 15hp models plus an added electric start feature for greater operating convenience. As with our other engines, you can count on it to deliver the same reliability our reputation was built on.
HDF15 4-Stroke Benefits:
- Truly six layers of paint, good corrosion resistance.
- Using the US brand PPG paint, more beautiful exterior.
- Plus timer, maintenance more convenient.
- Sleek design
- Light and compact!
- Advanced cross-flow induction for smooth operation
- Larger capacity oil reservoir for optimum lubrication
- Tuned intake system for crisp takeoffs
- CE approved.
High Performance and Easy Operation:
- Digital CD ignition for easier engine starting, quicker throttle response and smoother trolling
- Recoil starter with larger reel making manual starting fast and easy
- Large alternator and rectifier for superior battery charging
- Front mounted shift lever for easier operation
- Remote control models available
- Shallow water drive
- Adjustable steering friction for reducing steering effort
Fundamentals for User Convenience and Reliability:
- Through-the-prop exhaust for a quieter ride
- Thermostatically controlled cooling system for consistent engine temperature
- Stainless steel water pump housing liner for outstanding durability
- High grade marine aluminum alloy that provides the ultimate protection against corrosion
- Zinc coating on internal water passages for superior corrosion resistance
- 3.1 gallon (12 liter) fuel tank including fuel fittings and fuel line
- Aluminum propeller
Available in
- HDF15HS - Manual Start, Tiller Handle, Transom height – Short shaft
- HDF15HL - Manual Start, Tiller Handle, Transom height – Long shaft
- HDF15HES-IB-Electric start, Tiller handle, Internal Lithium Battery Transom height-Short shaft
- HDF15HEL-IB-Electric start, Tiller handle, Internal Lithium Battery Transom height-Long shaft
- HDF15FES-Electric start, Remote control, Transom height-Short shaft
- HDF15FEL-Electric start, Remote control, Transom height-Long shaft
Specification Model | HDF15 |
Max.Output(kw) | 11 |
Full Throttle Operating Range(rpm) | 4500-5500 |
Stroke | 4 |
Cylinder | 2 |
Displacement(cc) | 345 |
Bore×Stroke (mm) | 61×59 |
Compression Ratio | 9.9:1 |
Length×Width×Height (mm) | S:1000×427×1080 L:1000×427×1207 |
Length×Width×Height (inch) | S:39.4×16.8×42.5 L:39.4×16.8×47.5 |
Weight (kg) | S:58 L:60 |
Weight (lb) | S:128 L:132 |
Transom Height(mm) | S:448 L:575 |
Gear Ratio | 27:13(2.08) |
Gear Shift Position | F-N-R |
lgnition System | CDI |
Cooling System | Water-cooling |
Starting System | Manual/Electric start |
Control System | Rear / Front operation |
Capacity of Fuel Tank(L) | 12 |
