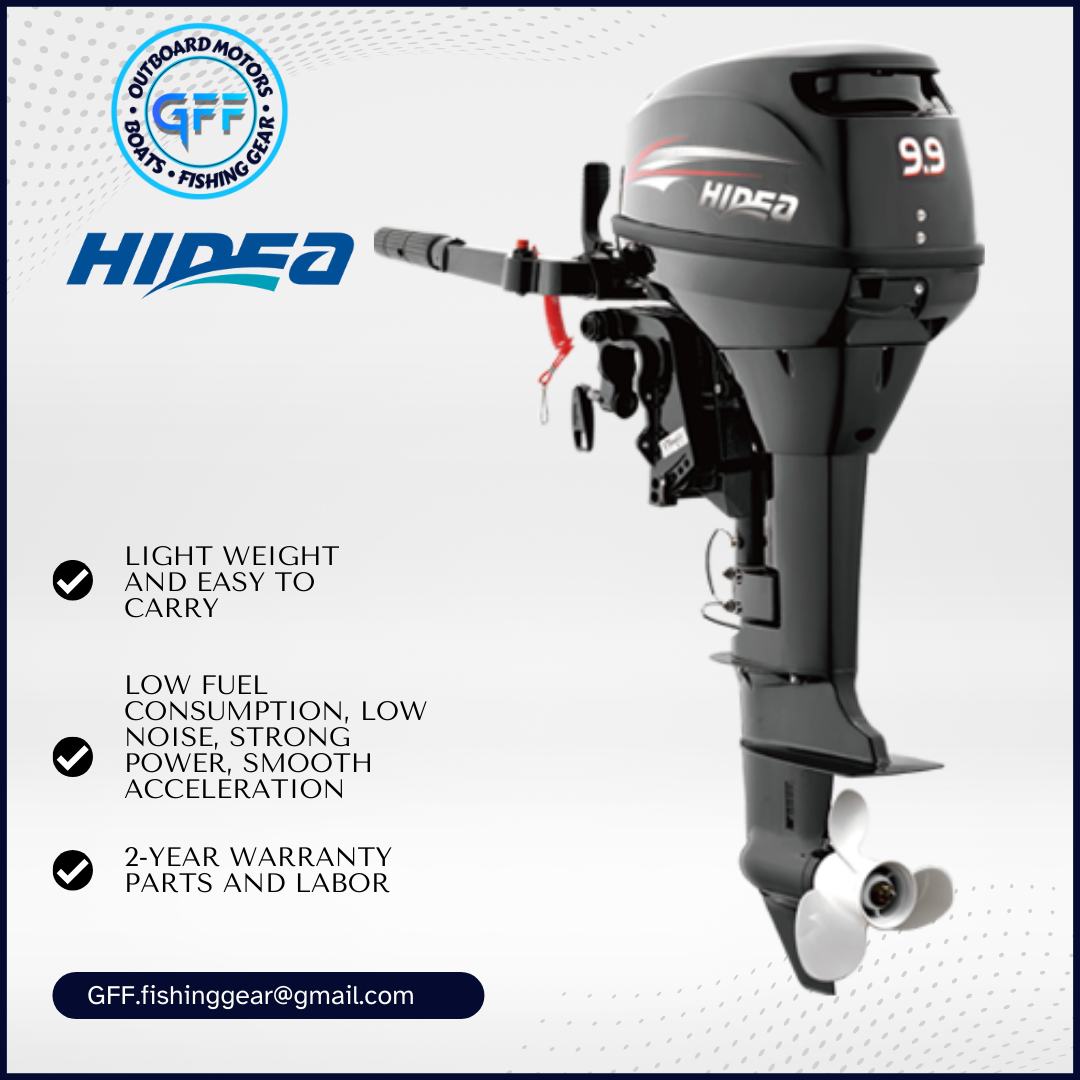

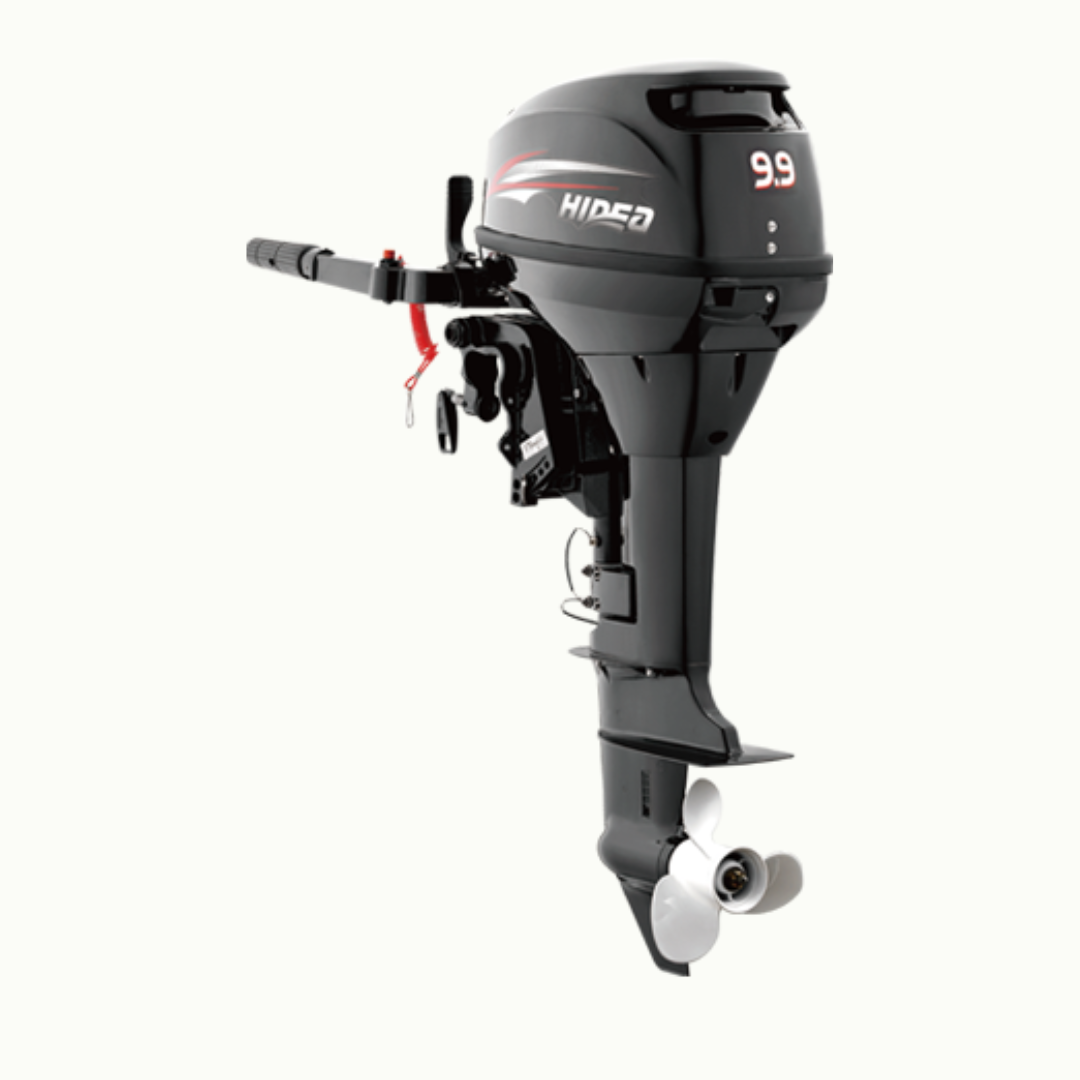

Hidea 9.9HP 2-stroke HD9.9F Outboard Motor
Hidea 9.9HP 2-stroke HD9.9F Outboard Motor
Couldn't load pickup availability
The HD9.9F has been designed to be easy to transport. This little engine delivers great fuel economy as well as the kind of performance customers have come to expect from Hidea.
◇ Light weight and easy to transport.
◇ Standard alternator/ lighting coil allows you to run a spotlight.
◇ Great for car toppers, small fishing rigs, inflatables and tenders
◇ CDI ignition provides automatic spark advance to provide maximum power throughout the whole RPM range
◇ Loop charging boosts power and fuel efficiency
◇ Comes standard with shallow water drive, an extremely useful feature when tackling rivers, estuaries and creeks.
◇ Truly six layers of paint, good corrosion resistance.
◇ Using the US brand PPG paint, more beautiful exterior.
Available in:
◇ HD9.9FHS - Manual Start, Tiller Handle, Transom height – Short shaft
◇ HD9.9FHL - Manual Start, Tiller Handle, Transom height – Long shaft
General Features:
◇ Pre mix 50:1
◇ 24 L Fuel tank & hose
◇ Shallow water drive
◇ Lighting coil
| Specification Model | HD9.9F |
| Max.Output(kw) | 7.3 |
| Full Throttle Operating Range(rpm) | 4500-5500 |
| Stroke | 2 |
| Cylinder | 2 |
| Displacement(cc) | 246 |
| Bore×Stroke(mm) | 56×50 |
| Length×Width×Height (mm) | S:873×332×1040 L:873×332×1167 |
| Length×Width×Height (inch) | S:34.4×13.1×40.9 L:34.4×13.1×45.9 |
| Weight(kg) | S:38.8 L:40 |
| Weight(lb) | S:86 L:88 |
| Transom Height(mm) | S:447 L:574 |
| Gear Ratio | 27:13(2.08) |
| Gear Shift Position | F-N-R |
| lgnition System | CDI |
| Cooling System | Water-cooling |
| Starting System | Manual |
| Control System | Rear operation |
| Lubrcation System | Gasoline & Machine Oil |
| Regular Gasoline | 50:1 |
| Capacity of Fuel Tank(L) | 24 |
