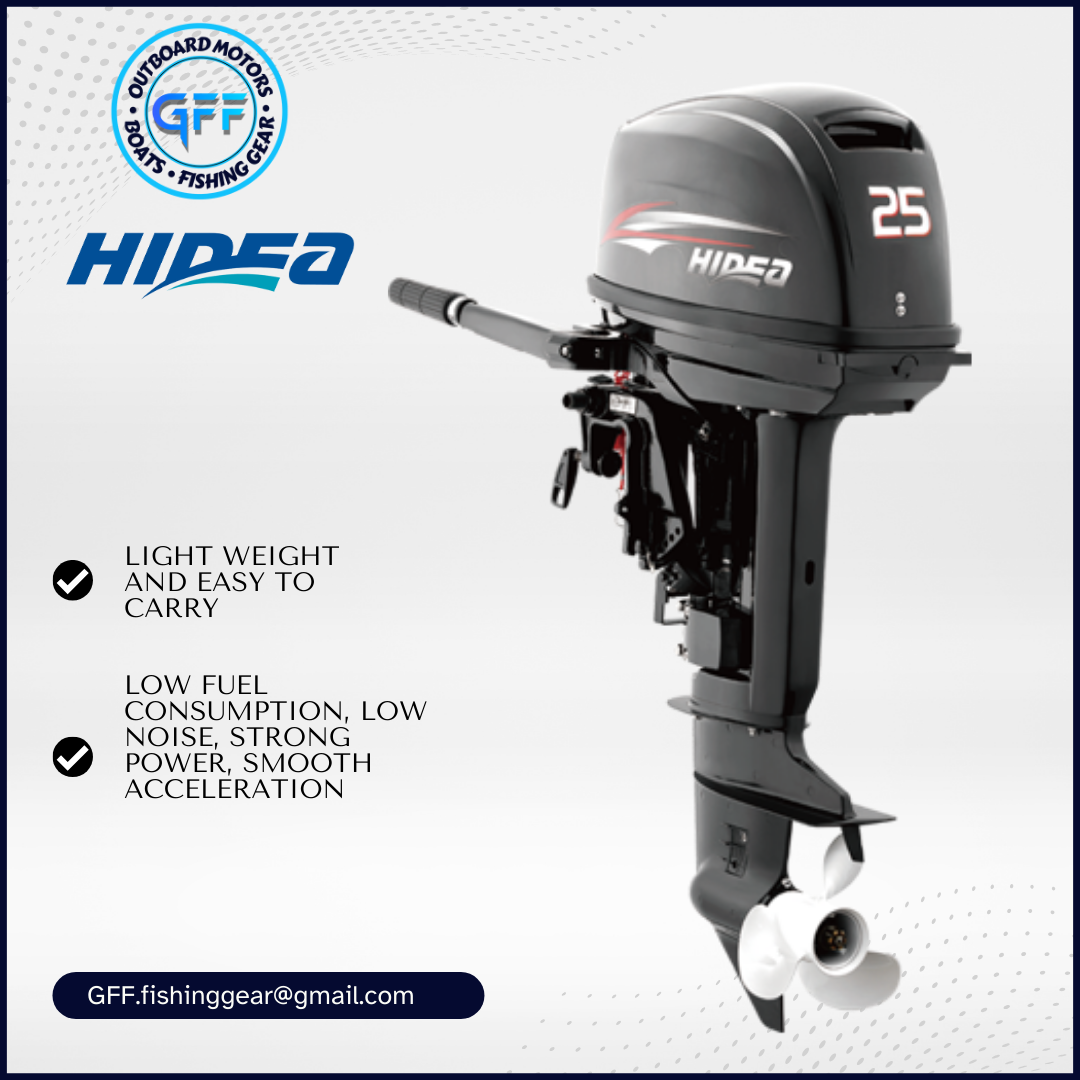

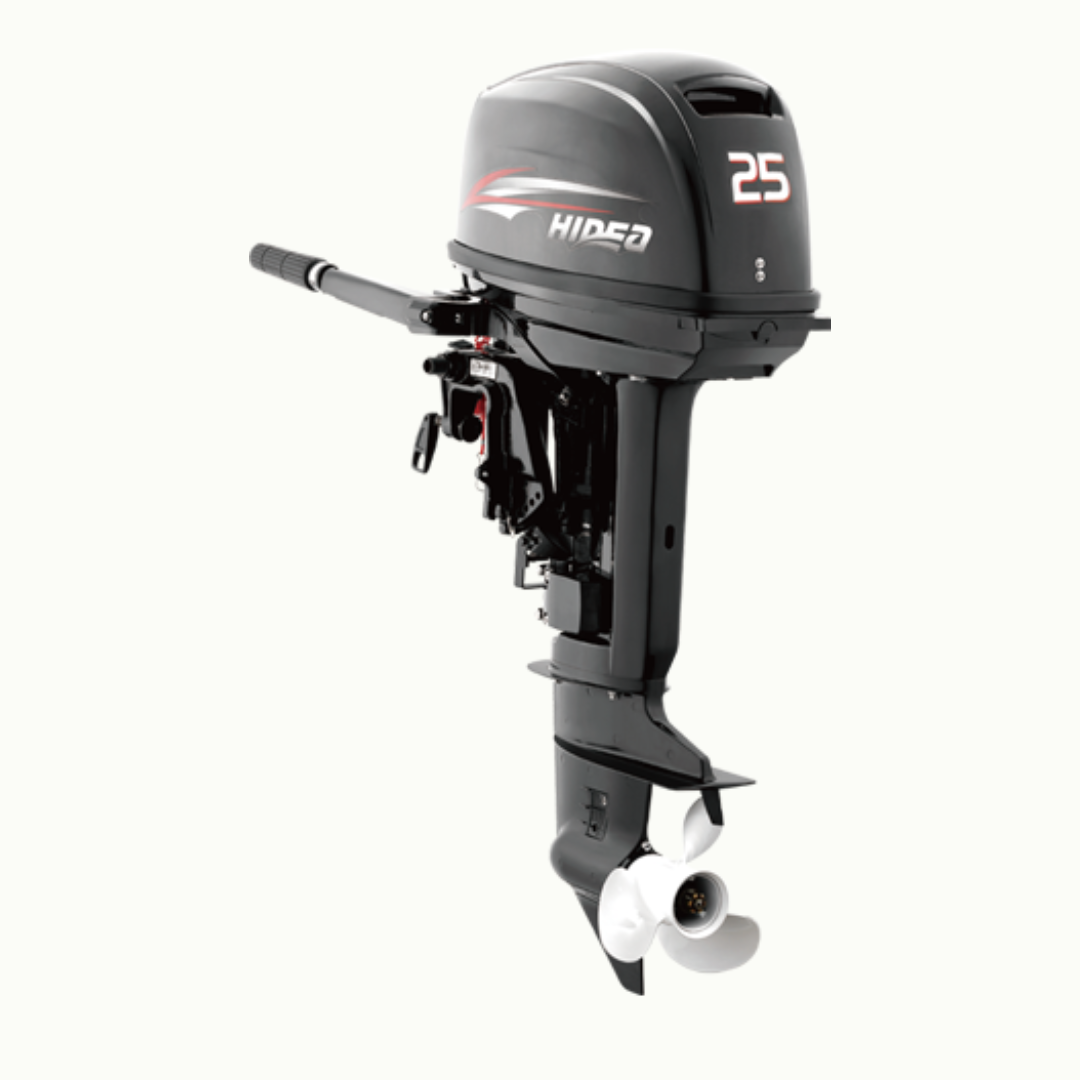

Hidea 25HP 2-stroke HD25F Outboard Motor
Hidea 25HP 2-stroke HD25F Outboard Motor
Excellent reliability with proven 2-stroke technology simple in design, Loop charged induction for smooth operation and fuel economy, CD ignition system for quicker starts, Remote control and electric start on select HD25F models
◇ Through-the-prop exhaust for a quiet ride
◇ Thermostatically controlled cooling system for consistent engine temperature
◇ Stainless steel water pump housing for outstanding durability
◇ High grade marine aluminum alloy that provides the ultimate protection against corrosion
◇ Zinc coating on internal water passages for superior corrosion resistance
◇ 24ltr Fuel Tank, fittings and fuel hose
◇ Shallow water drive
◇ Alternator fitted, add optional rectifier kit to charge battery on manual model (standard on Electric start models)
◇ Truly six layers of paint, good corrosion resistance.
◇ Using the US brand PPG paint, more beautiful exterior.
◇ High-power outboard motor Top cowling add cotton insulation, reduce the noise effectively.
Available in
◇ HD25FHS - Manual Start, Tiller Handle, Transom height – Short shaft
◇ HD25FHL - Manual Start, Tiller Handle, Transom height – Long shaft
◇ HD25FHES-Electric start, Tiller handle, Transom height-Short shaft
◇ HD25FHEL-Electric start, Tiller handle, Transom height-Long shaft
◇ HD25FFES-Electric start, Remote control, Transom height-Short shaft
◇ HD25FFEL-Electric start, Remote control, Transom height-Long shaft
Specification Model | HD25F |
Max.Output(kw) | 18.4 |
Full Throttle Operating Range(rpm) | 4500-5500 |
Stroke | 2 |
Cylinder | 2 |
Displacement(cc) | 496 |
Bore×Stroke(mm) | 72×61 |
Length×Width×Height short shaft (mm) | S:843×399×1146 L:843×399×1273 |
Length×Width×Height short shaft (inch) | S:33.2×15.7×45.1 L:33.2×15.7×50.1 |
Weight (kg) | S:53 L:57 |
Weight (lb) | S:117 L:126 |
Transom Height(mm) | S:441 L:568 |
Gear Ratio | 24:13(1.85) |
Gear Shift Position | F-N-R |
Lgnition System | CDI |
Cooling System | Water-cooling |
Starting System | Manual & Electric start |
Control System | Rear / Front operation |
Lubrcation System | Gasoline & Machine Oil |
Regular Gasoline | 50:1 |
Standard Capacity of Fuel Tank (L) | 24 |
