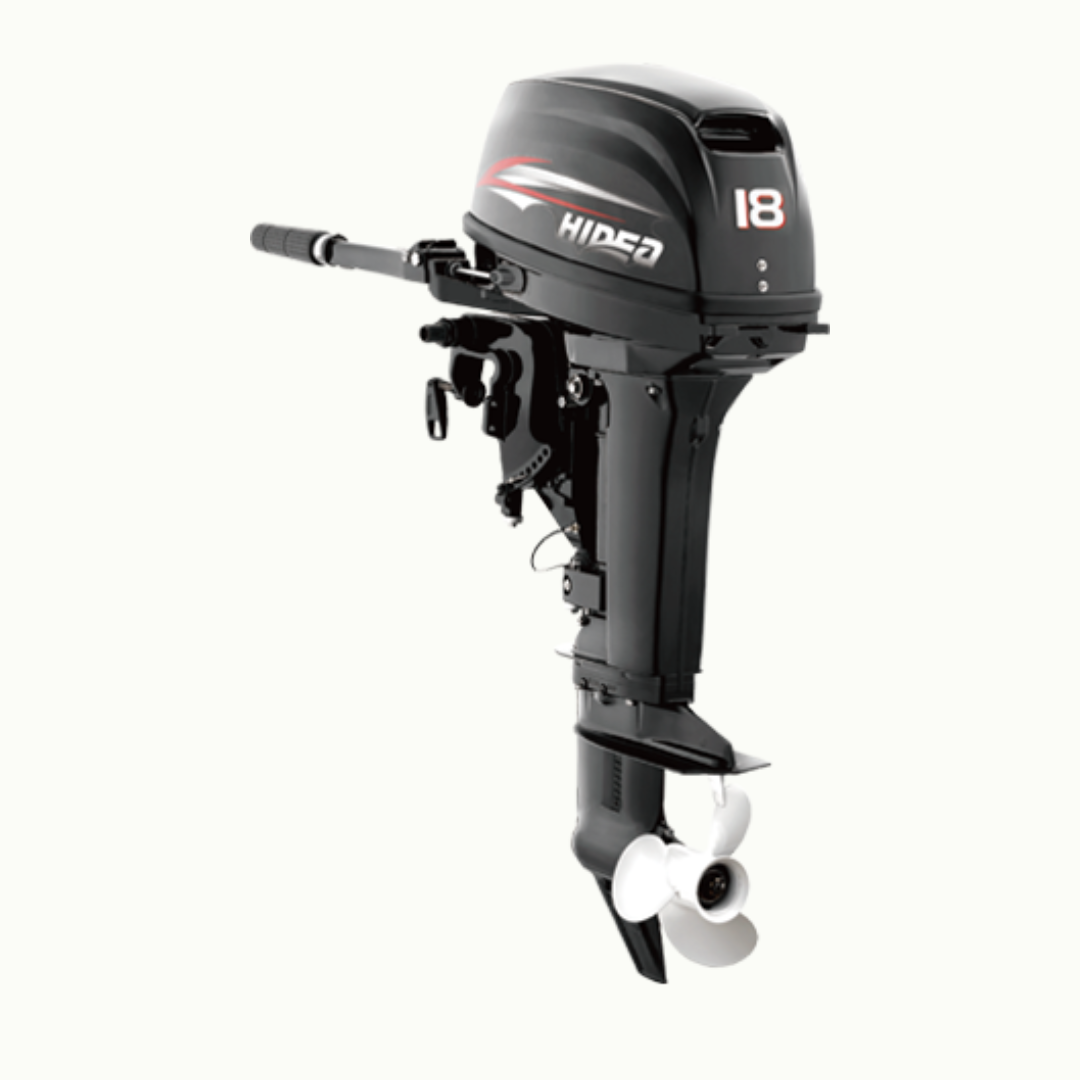

Hidea 18HP 2-stroke HD18F Outboard Motor
Hidea 18HP 2-stroke HD18F Outboard Motor
Built light and compact, Hidea’s two stoke models are designed so you can take them absolutely anywhere.
The HD18F is a powerful and versatile engine renowned for its grunt and reliability.
With a range of great features built in, the HD18F is extremely easy to use and provides the kind of performance customers have come to expect from Hidea.
◇ Light weight and easy to transport.
◇ Standard alternator/ lighting coil allows you to run a spotlight.
◇ Great for car toppers, small fishing rigs, inflatables and tenders
◇ CDI ignition provides automatic spark advance to provide maximum power throughout the whole RPM range
◇ Loop charging boosts power and fuel efficiency
◇ Features shallow water drive, an extremely useful feature when tackling rivers, estuaries and creeks.
◇ Truly six layers of paint, good corrosion resistance.
◇ Using the US brand PPG paint, more beautiful exterior.
Available in:
◇ HD18FHS - Manual Start, Tiller Handle, Transom height – Short shaft
◇ HD18FHL - Manual Start, Tiller Handle, Transom height – Long shaft
◇ HD18FFES - Electric Start, Remote Control, Transom height- Short shaft
◇ HD18FFEL -- Electric Start, Remote Control, Transom height - Long Shaft
Specification Model | HD18F |
Max.Output(kw) | 13.2 |
Full Throttle Operating Range(rpm) | 4500-5500 |
Stroke | 2 |
Cylinder | 2 |
Displacement(cc) | 326 |
Bore×Stroke(mm) | 62×54 |
Length×Width×Height (mm) | S:876×345×1067 L:876×345×1194 |
Length×Width×Height (inch) | S:34.5×13.6×45.9 L:34.5×13.6×47.0 |
Weight(kg) | S:41.8 L:44 |
Weight(lb) | S:92 L:97 |
Transom Height(mm) | S:437 L:561 |
Gear Ratio | 24:13(1.85) |
Gear Shift Position | F-N-R |
lgnition System | CDI |
Cooling System | Water-cooling |
Starting System | Manual / Electric start |
Control System | Rear / Front operation |
Lubrcation System | Gasoline / Machine Oil |
Regular Gasoline | 50:1 |
Capacity of Fuel Tank(L) | 24 |
